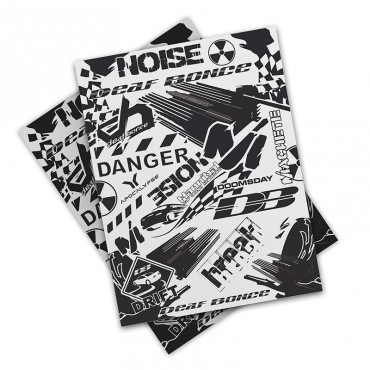

Highly elastic damping material. Easy to install on the surface with complicated areas and does not need heating during installation.
Has a sealing and anti-corrosion properties. It is applicable for any surface (plastic, metal) and usually used if there is no need to load the element.





Model
1.5


Type
Sound deadening


Package quantity
10 sheets


Gross weight
13.23 lb (6.00 kg)

Damping  material Alphard 2.0
Thickness - 2mm Sheet size - 0,6 *0,4
Specific weight – 29 kg/m2
material on the mastic base reinforced by aluminium foil
No warm by installation.10sheets


Damping  material Alphard 4.0
Thickness - 4mm Sheet size - 0,6 *0,4
Specific weight – 29 kg/m2
material on the mastic base reinforced by aluminium foil
No warm by installation.5 sheets







Subwoofer 12 inch , VC Size 3 inch



Cone : Paper , Magnet : Ferrite


Voice coil : Copper Clad Aluminum Wire


Surround Material : Foam , Frame : Alu


RMS Power : 2500 W , MAX Power : 5000 W


Impedance : 1+1 / 2+2 Ohm , Mounting Depth : 249 mm


Cut-out dimensions : 284 mm


SPL @ 1w/1m 86 dB , Fs : 33.5 Hz , Cms : 0.04 m/N


Mms : 420.54 g , Qes : 0.42 , Qms : 7.45


Qts : 0.42, BL : 28, Vas : 71 l, Xmax : 28 mm, Bass Reflex Box : 55L


Port Area : 200cm2 , Port Length : 70cm , 35 Hz

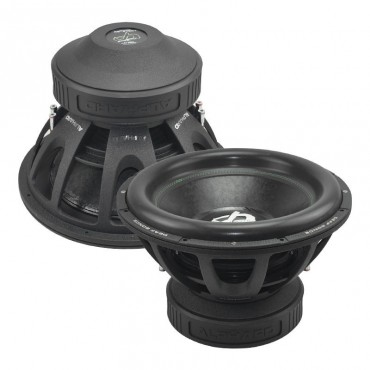

Subwoofer 18 inch , VC Size 4 inch




Cone : Paper , Magnet : Ferrite





Voice coil : Copper Clad Aluminum Wire




Surround Material : Foam , Frame : Alu




RMS Power : 3000 W , MAX Power : 6000 W



Impedance : 1+1 / 2+2 Ohm , Mounting Depth : 307 mm


Cut-out dimensions : 429 mm





SPL @ 1w/1m 90 dB , Fs : 29.4 Hz , Cms : 0.02 m/N



Mms : 666.35 g , Qes : 0.51 , Qms : 6.49




Qts:0.42, BL:26.3, Vas: 175 l, Xmax: 32 mm, Bass Reflex Box: 160L


Port Area : 450cm2 , Port Length : 70cm , 30 Hz

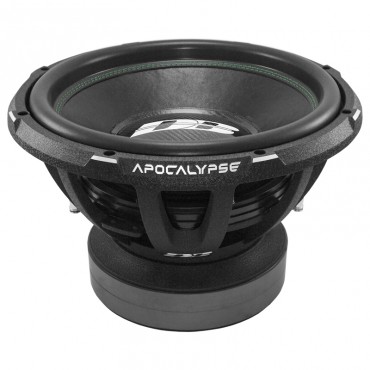

This is a first serial product specially designed for professional use in the street stock classes of SPL competitions, where is very important to achieve ideal balance between a high-power magnetic circuit and a lightweight moving system with a large effective cone area that provides a high sensitivity of the subwoofer. Literally, every part of this product was tested in real competition SPL systems, as a result of which we created a highly effective tool for achieving world records.



Size
15 inch


Voice coil size
4.00 inch


Cone
Paper


Magnet
Ferrite


Voice coil wire
CCAW


Surround
Foam


RMS Power
2400 W


MAX Power
4800 W


Frame
Alu


Impedance
1+1 Ohm


SPL
90.00 dB


Fs
42.00 Hz


Qts
0.45


BL
15.30


Re
0.5+0.5


Vas
31.42 L


Xmax
16.00 mm


Mounting depth
9.61 inch


Cut-out dimension
13.90 inch


Gross weight
70.55 lb (32.00 kg)

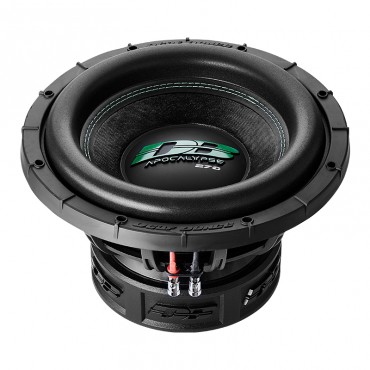

Apocalypse DB-SA272 D1




Type
Subwoofer


Size
12 inch


Voice coil size
2.75 inch


Cone
Paper


Magnet
Ferrite


Voice coil wire
CCAW


Surround
Foam


RMS Power
1500 W


MAX Power
3000 W


Frame
Alu


Impedance
2+2


SPL
86.20


Fs
31.12


Qts
0.36


BL
20.83


Vas
30.74


Xmax
18.00


Mounting depth
7.07 inch


Cut-out dimension
11.00 inch


Gross weight
30.64 lb (13.90 kg)

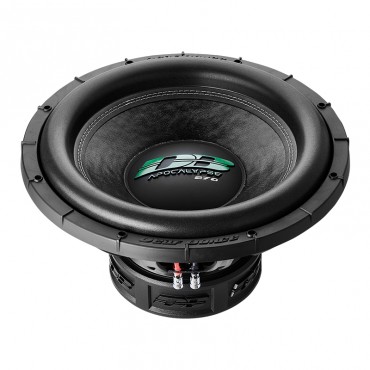

Apocalypse DB-SA275 D1




Model
DB-SA275D1


Type
Subwoofer


Size
15 inch


Voice coil size
2.75 inch


Cone
Paper


Magnet
Ferrite


Voice coil wire
CCAW


Surround
Foam


RMS Power
1500 W


MAX Power
3000 W


Frame
Alu


Impedance
1+1


SPL
88.00


Fs
29.70


Qts
0.42


BL
18.60


Vas
62.00


Xmax
18.00


Mounting depth
7.85 inch


Cut-out dimension
14.09 inch


Gross weight
33.51 lb (15.20 kg)
